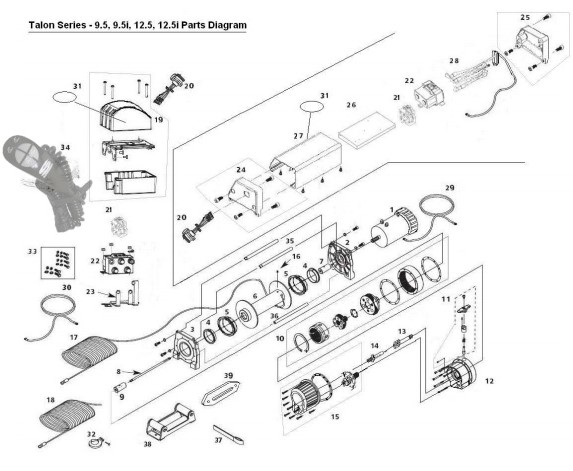

Для подбора запчасти для лебедки Superwinch Talon 9,5(12V, 24V) найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Part No | Description | Русское название | Артикул |
| 1 | 90-41409 | Motor-Talon 12V(includes bearing) | Мотор | W0891 |
| 90-41410 | Motor-Talon 24V(includes bearing) | |||
| 2 | 90-41414 | Drum support-motor side | Боковина мотора | W1010 |
| 3 | 90-41415 | Drum support-gearbox side | Боковина редуктора | W1000 |
| 4 | 90-24542 | Drum bushing-plastic (pair) | Пластиковые подшипники | W1001 |
| 5 | 90-24543 | Drum to seal (pair) | Сальник барабана | W1002 |
| 6 | 90-41416 | Drum assembly | Барабан | W0938 |
| 7 | 90-24544 | Driveshaft coupling-motor side | ||
| 8 | 90-24545 | Driveshaft | ||
| 9 | 90-24546 | Driveshaft coupling-gearbox side | ||
| 10 | 90-41417 | Planetary gearbox (includes 2nd & 3rd stage ring gear, carrier, snap ring & gasket) | Вторая и третья ступени редуктора | w1537 |
| 11 | 90-24547 | Freespool knob assembly (includes setscrews) | ||
| 12 | 90-41418 | Gearbox housing (includes ball bearing, roller bearing & 6 screws) | ||
| 13 | 90-24548 | Sun gear shaft, 2nd stage | ||
| 14 | 90-24549 | Sun gear shaft, 1st stage | ||
| 15 | 90-32458 | Brake assembly (includes brake cover, brake assembly, and 8 screws) | Тормоз | W1332 |
| 16 | 90-12896 | Set screws, wire rope | ||
| 17 | 90-24550 | Wire rope assembly (wire rope models) | ||
| 18 | 90-24506 | Synthetic rope assembly (synthetic rope models) | ||
| 19 | 90-41419 | Solenoid box assembly (motor-mounted solenoid boxes only, includes bracket, box top and bottom, & screws | ||
| 20 | 90-24551 | Socket assembly (includes wiring and plug) | Разъем блока управления | W0908 |
| 21 | 90-24552 | Dual relay assembly 12V (includes bracket) | ||
| 90-24566 | Dual relay assembly 24V (includes bracket) | |||
| 22 | 90-32459 | Solenoid 12V | Соленоид 12В | W0896 |
| 90-32483 | Solenoid 24V | Соленоид 24В | W0897 | |
| 23 | 90-32460 | Buss bar (set of 3) (motor mounted solenoid box models only) | ||
| 24 | 90-32461 | Bridge side casting (gearbox side) (bridge style solenoid box models only) | ||
| 25 | 90-32462 | Bridge side casting (motor side) (bridge style solenoid box models only) | ||
| 26 | 90-41420 | Base plate (bridge style solenoid box models only) | ||
| 27 | 90-41421 | Cover, bridge (bridge style solenoid box models only, includes screws) | ||
| 28 | 90-41422 | Wiring-solenoid cables, motor cables and power cables (bridge style solenoid box models only, indudes grommets) | ||
| 29 | 90-24553 | Ground cable motor | ||
| 30 | 90-24554 | Power cable (motor mounted solenoid box models only) | ||
| 31 | 90-32463 | Label set (includes bridge/solenoid box label, gearbox warning label, motor label & roller fairlead warning label) Talon 9,5 | ||
| 90-32467 | Label set (includes bridge/solenoid box label, gearbox warning label, motor label & roller fairlead warning label) Talon 9,5 SR | |||
| 32 | 90-24555 | Hook-3/8''clevis hook with latch (wire rope models) | ||
| 90-24556 | Hook-1/2''clevis hook with latch (synthetic rope models) | Крюк для синтетического троса | W0881 | |
| 33 | 90-24557 | Mounting hardware kit | ||
| 34 | 90-32482 | Handheld controller 12V | Пульт управления 12В | W0902 |
| 90-32471 | Handhekl controller 24V | Пульт управления 24В | W0903 | |
| 35 | 90-32456 | Tie rod-engraved (motor-mounted solenoid box model only, pair with screws) | Трубка стягивающая | W0998 |
| 36 | 90-32457 | Tie rod round (1 with screws) | Трубка стягивающая нижняя | W0999 |
| 37 | 90-32472 | Handsaver | Защита рук | W1391 |
| 38 | 90-32473 | Rollerfair lead (wire rope models) | ||
| 39 | 90-24507 | Hawse fairlead (synthetic rope models) | Клюз для троса (синтетика) | W0879 |
