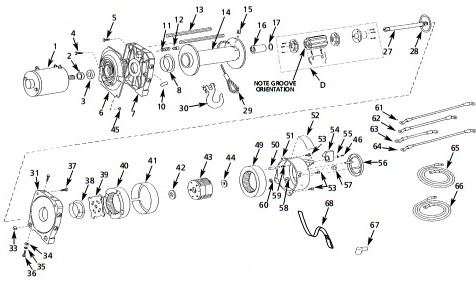

Для подбора запчасти для лебедки Superwinch X-9(12V, 24V) найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Part No | Description | Русское название | Артикул |
| 1 | 90-33333 | 12 VDC Motor (inc. thru bolts) | Мотор | W0883 |
| 90-33334 | 24 VDC Motor (inc. thru bolts) | |||
| 2 | 90-10354 | Motor Spacer | ||
| 3 | 94-23079-05 | Ball Bearing | ||
| 4 | 90-23039-10 | 1/4-20 x 5/8 Self tapping hex head screw | ||
| 5 | 90-23055-06 | 1/4-20 x 3/4 Socket Head Cap Screw | ||
| 6 | 90-32165 | Motor Adapter | ||
| 7 | 90-32255 | Outboard Drum Support w/10 | ||
| 8 | 90-12575 | Drum Bearing | ||
| 10 | 92-10211 | Winding Direction Label | ||
| 11 | 90-23152-08 | Drag Button Spring | ||
| 12 | 90-22612 | Drag Button | ||
| 13 | 90-20033 | Tie Rod | ||
| 14 | 90-31069-04 | Drum | ||
| 15 | 94-23164-09 | M8 x 10 Socket Set Screw | ||
| 16 | 90-22110 | Drive Shaft Coupling | ||
| 17 | 90-23120-08 | Washer | ||
| D | 90-25036 | Brake Assembly | Тормоз в сборе | W0890 |
| 27 | 90-22254 | Drive Shaft Assembly | ||
| 28 | 90-12574 | Thrust Washer | ||
| 29 | 1580 | 5/16 x 100 ft. Wire Rope w/o Hook | ||
| 30 | 94-20116 | Clevis Hook Assembly | ||
| 31 | 90-32168 | Inboard Drum Support | ||
| 33 | 90-23084-04 | 3/B-16 Square Nut | ||
| 34 | 92-23027-05 | 3/8 Flat Washer | ||
| 35 | 92-23057-01 | 3/8 Lock Washer | ||
| 36 | 90-23226-01 | 3/8-16 x 1 Hex Head Bolt, Grade 8 | ||
| 37 | 90-23055-06 | 1/4-20 x 3/4 Socket Head Cap Screw | ||
| 38 | 90-12575 | Drum Bearing | ||
| 39 | 90-22183 | Drum Driving Plate | ||
| 40 | 90-32232-01 | Output Ring Gear | ||
| 41 | 90-22607 | Ring Gear Bearing | ||
| 42 | 90-10417 | Carrier Bushing | ||
| 43 | 90-32238 | Planet Carrier Assembly | ||
| 44 | 90-10418 | Gearbox Bushing | ||
| 45 | 90-23171-05 | Plastic Closure | ||
| 46 | 90-23032-17 | 8/32 x 3/8 Pan Head Screw | ||
| 49 | 90-32233-01 | Fixed Ring Gear | ||
| 50 | 90-22252-01 | Lock Pin | ||
| 51 | 90-32256 | Gearbox Housing (w/52, 56-58, 60 specify model no. when ordering) | Корпус редуктора | W1444 |
| 52 | 90-22263 | Warning/Clutch Operation Label (specify model no.) | ||
| 53 | 90-23039-10 | 1/4-20 x 5/8 Self Tapping Hex Head Screw | ||
| 54 | 90-32248 | Clutch Lever | ||
| 55 | 90-23048-03 | #8 Int. Tooth Lock Washer | ||
| 56 | 90-22103 | Dust Cover | ||
| 57 | 90-23171-07 | Plug | ||
| 58 | 92-10194 | Rubber Washer | ||
| 59 | 90-23152-07 | Clutch Spring | ||
| 60 | 90-23213-04 | Push-On Retainer | ||
| 61 | 90-22695-26 | 2 AWG x 16* Lead Wire Assembly (yellow) | ||
| 62 | 90-22695-25 | 2 AWG x 13* Lead Wire Assembly (blue) | ||
| 63 | 90-22695-27 | 2 AWG x 10* Lead Wire Assembly (white) | ||
| 64 | 90-22635-33 | 10 AWG x 24* Lead Wire Assembly | ||
| 65 | 90-22635-47 | 2 AWG x 8' Lead Wire Assembly (black) | ||
| 66 | 90-22695-46 | 2 AWG x 8‘ Lead Wire Assembly (red) | ||
| 67 | 90-23247-04 | 2 AWG Boot Terminal | ||
| 68 | 87-31120 | Handsaver nylon cord | Защита рук | W1391 |
| NS | 94-23058-04 | 7* Long Wire Tie | ||
| NS | 90-15020 | Grease (for one relube) | ||
| NS | 90-10414-05 | Motor Brush Repair Kit | ||
| ACC | 2539 | Roller Fairlead | Ролики направляющие | W1377 |
| ACC | 7750A | Pulley Block, 20,000 lbs. | ||
| ACC | 2232 | Circuit Breaker Kit - 12 V | ||
| ACC | 2232A | Circuit Breaker Kit - 24 V | ||
| 90-20329 | Соленоид - 12V | Соленоид 12В | W0898 | |
| 90-20331 | Соленоид - 24V | Соленоид 24В | W0899 | |
| Разъем пульта управления | W0907 | |||
| Пульт управления | W0904 | |||
| Кнопка пульта управления | W0906 |
