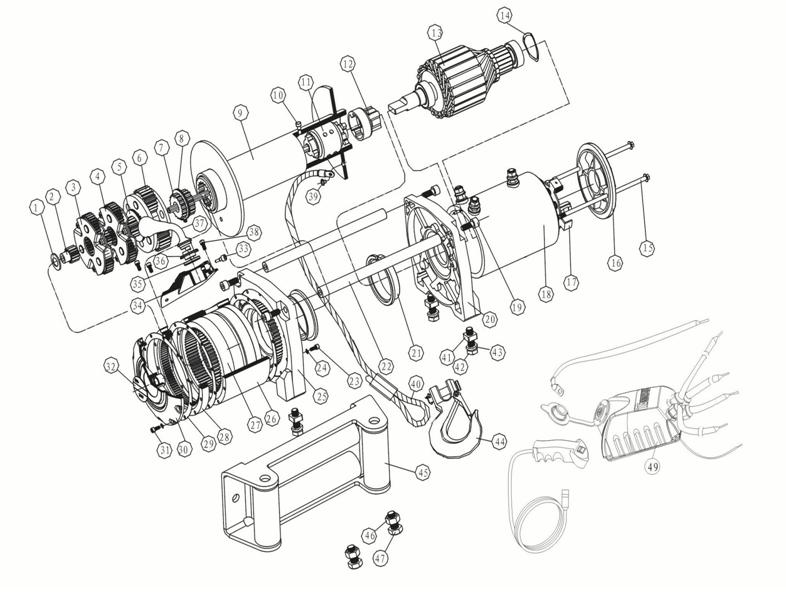

Для подбора запчасти для лебедки T-MAX PEWI-9500 Performance найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item No. | Part No. | Description | Qty |
| 1 | GB95-85 12 | Dia12 Washer | 1 |
| 2 | 7329202.3-13 | Sun Gear-Input | 1 |
| 3 | 7329202.3.1 | Gear Carrier Ass'y-Input | 1 |
| 4 | 7329202.3.2 | Gear Carrier Ass'y-Interinediate | 1 |
| 5 | 7329202.3-9A | Washer Thrust 1.2mm Thick | 2 |
| 6 | 7329202.3.3 | Gear Carrier Ass'y-Output | 1 |
| 7 | 7329202.3.3-1 | Outer Spline | 1 |
| 8 | GB894-86 32 | Retained Ring | 2 |
| 9 | 7329202.2 | Dunn Ass'y | 1 |
| 10 | 7329202.2 | Bolt For Brake | 1 |
| 11 | GB79-85 8X12 | Brake Ass'y | 1 |
| 12 | 7329202.4 | Coupling Joint | 1 |
| 13 | 7329202.4-1 | Rotor Ass'y | 1 |
| 14 | 7329202.1.2 | Spring Washer | 2 |
| 15 | GB955-87 18 | Long Bolt | 2 |
| 16 | GB5788-86 M6X154 | Motor Cover | 1 |
| 17 | 7329202.1-2 | Carbon Ass'y | 1 |
| 18 | 7329202.1.3 | Stator Ass'y | 1 |
| 19 | 7329202.1.1 | Link Screw | 4 |
| 20 | GB70-85 M8X25 | Motor Base | 1 |
| 21 | 7329202.1.1 | Nylon Bearing | 2 |
| 22 | 7329202.0-3 | Tie Bar | 2 |
| 23 | 7329202.0-2 | Bolt M4X16 | 10 |
| 24 | GB70-85 M4X16 | Lockwasher dia4 | 20 |
| 25 | GB93-87 4 | Gear Box Base | 1 |
| 26 | 7329202.3-1 | Gear Box Tube | 1 |
| 27 | 7329202.3-3 | Clutch Gear | 1 |
| 28 | 7329202.3-10 | 72 Tooth Inner Gear | 1 |
| 29 | 7329202.3-14 | Gasket II | 3 |
| 30 | 7329202.3-11 | Gear Box Cover | 1 |
| 31 | GB70-85 M4X25 | Belt M4X25 | 10 |
| 32 | Aluminium Plate | 1 | |
| 33 | 7329202.3-8 | Clutch Bolt | 1 |
| 34 | 7329202.3-4 | Clutch Handle Base | 1 |
| 35 | 7329202.3-5A | Clutch Washer | 1 |
| 36 | 7329202.3-6A | Stainless Clutch Cover | 1 |
| 37 | 7329202.3-7 | High Clutch Handle | 1 |
| 38 | GB70-85 M4X10 | Bolt M4X10 | 3 |
| 39 | GB65-85 M6X8 | Bolt For Wire Rope Fixing | 1 |
| 40 | 7329202.5 | Wire Rope | 1 |
| 41 | GB39-88 M10 | Mounting Nut | 4 |
| 42 | GB/T 1228-91 M10X35 | Mounting Bolt | 4 |
| 43 | GB7244-87 10 | Lockwasher dia10 | 4 |
| 44 | 7329202.0-4 | Hook | 1 |
| 45 | 7329202.7 | Roller Fairlead | 1 |
| 46 | GB1229-88 M12 | Mounting Nut | 2 |
| 47 | GB/T 1228-91 M12X25 | Mounting Bolt | 2 |
| 49 | 7329103.1 | Integrated Solenoid Box Ass'y | 1 |
