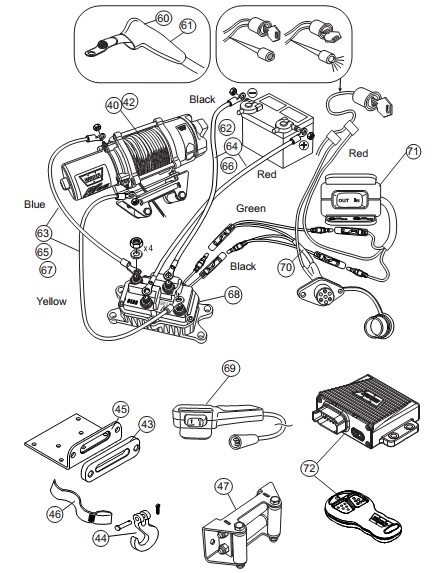

Для подбора запчасти для лебедки WARN XT30 найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Description | Item/Kit No. |
| 1 | WINCH MOTOR ASSEMBLY | 73900 |
| 2 | WINCH DRUM BUSHING | 69637 |
| 6 | WINCH DRUM | 74922 |
| 8 | DRIVE SHAFT | 74997 |
| 13 | STAGE 3 CARRIER SET | 75005 |
| 14 | STAGE 2 CARRIER SET | 75004 |
| 15 | WINCH RING GEAR | 74918 |
| 16 | STAGE 1 CARRIER SET | 75002 |
| 17 | SUN GEAR 12T | 74999 |
| 18 | WINCH ASSEMBLY HOUSING | 74919 |
| 22 | WINCH TIE BOLT | 74916 |
| 32 | WINCH CLUTCH CAP | 79594 |
| 37 | WINCH RED CLUTCH HANDLE | 76873 |
| WINCH SEAL KIT | 74925 | |
| 3 | MS X-RING DRUM SEAL (Qty. 1) | |
| 7 | GS X-RING FLANGE DRUM SEAL (Qty. 1) | |
| 12 | YELLOW 4.1" O-RING SEAL (Qty.1) | |
| 29 | WINCH QUAD-RING SEAL (Qty. 2) | |
| 31 | YELLOW 2.9" O-RING SEAL (Qty. 1) | |
| WINCH MOTOR COUPLER KIT | 74995 | |
| 4 | MOTOR RAMP COUPLER (Qty. 1) | |
| 5 | MOTOR FOLLOWER COUPLER (Qty. 1) | |
| WINCH TIE ROD KIT | 74920 | |
| 10 | METRIC WINCH TIE ROD (Qty. 2) | |
| 19 | M6X20 BUTTON HEAD CAPSCREW (Qty. 4) | |
| WNCH DRUM SUPPORT KIT | 74917 | |
| 9 | ROPE PROTECTOR PLATE (Qty. 1) | |
| 11 | WINCH DRUM SUPPORT (Qty. 1) | |
| 19 | M6X20 BUTTON HEAD CAPSCREW (Qty. 2) | |
| WINCH HOUSING ASSEMBLY | 74919 | |
| 23 | WINCH CAST GEAR HOUSING (Qty. 1) | |
| 24 | BRAKE RETAINER PLATE (Qty. 1) | |
| 25 | BRAKE ASSEMBLY DISK (Qty. 1) | |
| 26 | BRAKE THRUST BEARING (Qty. 1) | |
| 27 | BRAKE THRUST WASHER (Qty. 1) | |
| 28 | BRAKE WAVE SPRING (Qty. 1) | |
| 29 | WINCH QUAD-RING SEAL (Qty. 2) | |
| 30 | WINCH CLUTCH PIN (Qty. 2) | |
| 31 | YELLOW 2.9" O-RING SEAL (Qty. 1) | |
| 32 | WINCH CLUTCH CAP (Qty. 1) | |
| 33 | #6 TORX PLASTITE SCREW (Qty. 6) | |
| 34 | WINCH CLUTCH BAR (Qty. 1) | |
| 35 | WINCH CLUTCH DIAL (Qty. 1) | |
| 36 | 5/8" EXTERNAL RETAINING RING (Qty. 1) | |
| WINCH CLUTCH DIAL/HANDLE KIT | 74921 | |
| 35 | DIAL CLUTCH WINCH RT/XT (Qty. 1) | |
| 37 | HANDLE CLUTCH RED WINCH RT/XT (Qty. 1) | |
| BRAKE KIT WINCH RT/XT | 74923 | |
| 24 | RETAINER PLATE (Qty. 1) | |
| 25 | BRAKE DISK ASSEMBLY (Qty. 1) | |
| 26 | BRAKE THRUST BEARING (Qty. 1) | |
| 27 | BRAKE THRUST WASHER (Qty. 1) | |
| 28 | BRAKE WAVE SPRING (Qty. 1) | |
| 31 | YELLOW 2.9" O-RING SEAL (Qty. 1) | |
| WINCH CLUTCH GROUP KIT | 74926 | |
| 30 | WINCH CLUTCH PIN (Qty. 2) | |
| 34 | WINCH CLUTCH BAR (Qty. 1) | |
| METRIC MOUNTING HARDWARE KIT | 74930 | |
| RT BADGE MOTOR LABEL KIT | 77838 | |
| XT BADGE MOTOR LABEL KIT | 77839 | |
| WINCH CLUTCH LABEL KIT | 78227 | |
| 40 | WIRE ROPE ASSY 3/16" x 50 ft. | 60076 |
| 42 | SYNTHETIC ROPE 3/16" x 50 ft. | 73599 |
| 43 | WINCH HAWSE FAIRLEAD | 28930 |
| 44 | CLEVIS HOOK 5/16" w/STRAP | 39557 |
| 45 | FAIRLEAD MOUNT PLATE | 69901 |
| 46 | WINCH HOOK STRAP | 69645 |
| 47 | ROLLER FAIRLEAD KIT | 28929 |
| 60 | 6 GA ELECTRICAL BOOT (Qty. 2) | 76997 |
| 61 | 8 GA ELECTRICAL BOOT (Qty. 2) | 76998 |
| 62 | 8 GA BLACK/RED 32" CABLE ASSY KIT | 76851 |
| 63 | 8 GA BLUE/YELLOW 88"CABLE ASSY KIT | 76852 |
| 64 | 6 GA BLACK/RED 32" CABLE ASSY KIT | 76853 |
| 65 | 6 GA BLUE/YELLOW 88" CABLE ASSY KIT | 76854 |
| 66 | 6 GA BLACK/RED 36" CABLE ASSY KIT | 76855 |
| 67 | 6 GA BLUE/YELLOW 96" CABLE ASSY KIT | 76856 |
| 68 | 12V DC CONTACTOR | 63070 |
| 69 | REMOTE CONTROL 10 ft. | 64849 |
| 70 | WINCH REMOTE SOCKET ASSY | 69648 |
| 71 | HANDLEBAR MINI-ROCKER SWITCH | 64851 |
| 72 | WIRELESS REMOTE CONTROL | 74500 |
